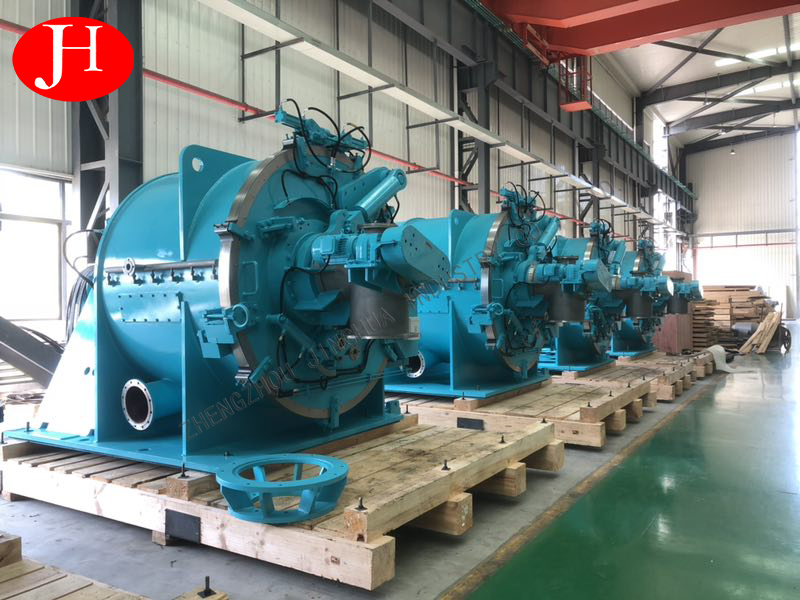

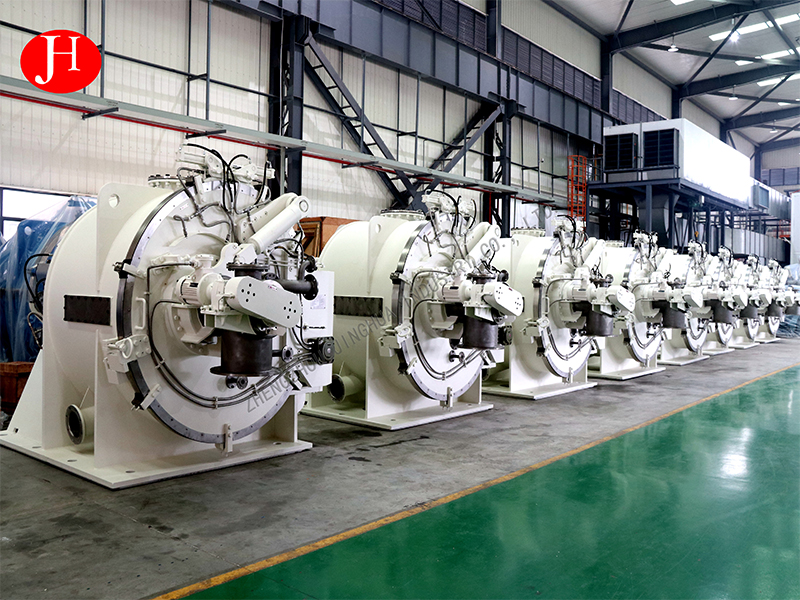

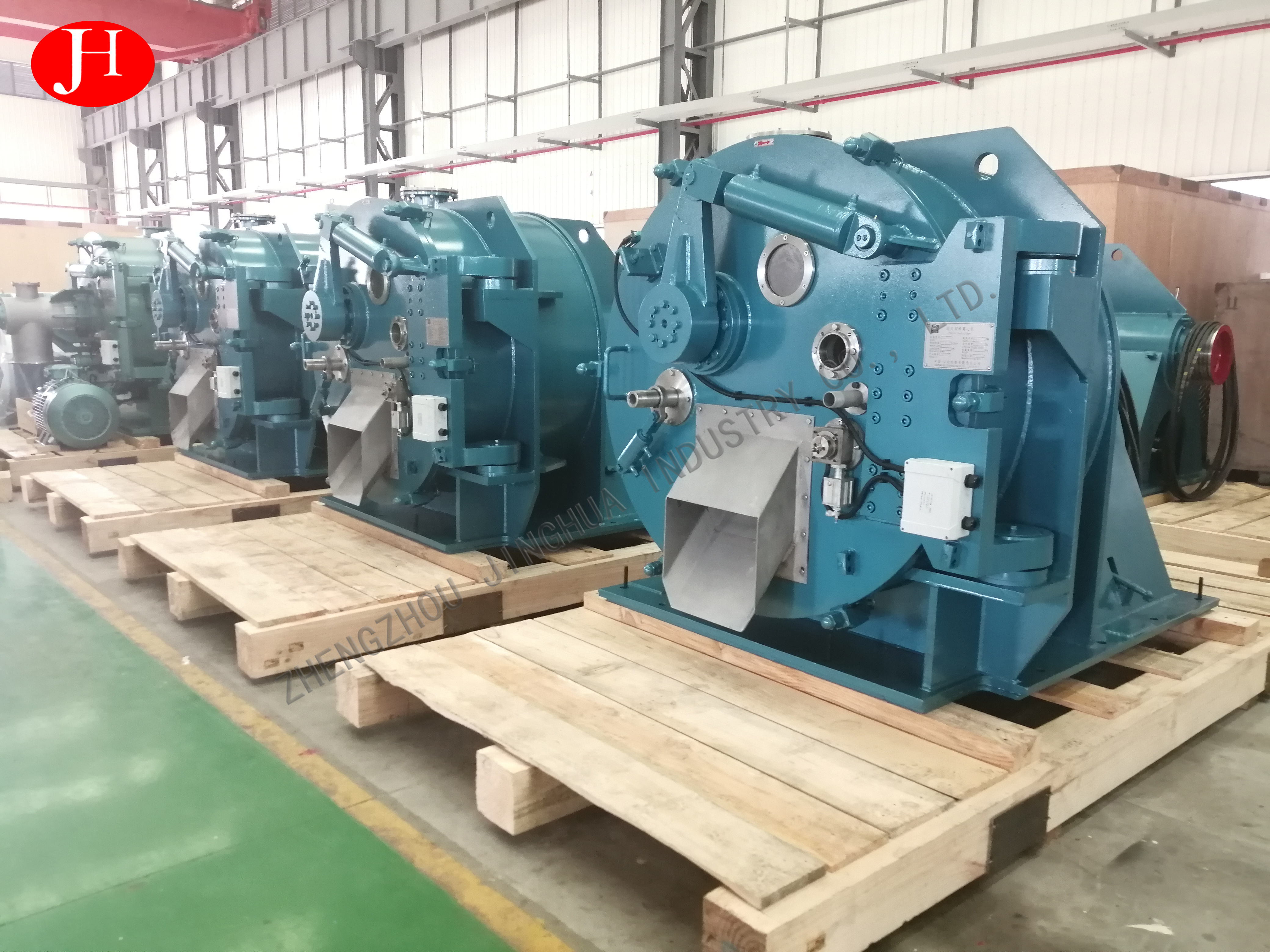

Peeler Centrifuge for Starch Processing

Centrifuge can continuously work and intermittently filter. It is either automatic control or manual control.

Centrifuge dehydrates starch mainly by centrifugal force.It widely used in corn starch making,cassava starch making and potato starch making and so on.

Send email to us

Product Detail

Main technical parameters

Model	GK800/GKH800	GK1250/GKH1250	GK1600/GKH1600
Bowl diameter(mm)	800/800	1250/1250	1600/1600
Bowl lenght(mm)	400/450	600/600	800/1000
Bowl’s rotating speed(r/min)	1400/1550	1200/1200	900/950
Separating factor	876/1070	1006/1006	725/808
Dimension (mm)	2480x1650x1300 2030x1960x1350	3100 x 2070 x 1775 2870 x 2470 x 1955	3885 x 2726 x 2220 4050 x 2745 x 2295
Weight(Kg)	3200/5500	8800/11150	11550/16550
Power(kw)	30/45	55/90	90/132

Features

1 Fully sealed stainless steel structure. moisture is low.
2 Stable operation and reasonable motor configuration.
3 Continuous or intermittent work may be performed. Adopt automatic or manual control.
4 The whole operation process includes feeding, separating, cleaning, dewatering, unloading, and recovery of press cloth at high speed. The single cycle time is short, the processing capacity is large, the solid filter residue dry cleaning effect is good.
5 It can shorten separation time and achieve high yield and low moisture content. Applicable to medicine, food industry.
6 Self-contained steel counterweight, directly installed in place.
7 The hydraulic lubrication station, transmission system, steel counterweight and the main engine are integrated, with a compact structure and a small footprint.
8 Modular design, free combination of spiral and tubular chute discharge.
9 With spring damping shock absorber, the vibration isolation effect is good.

Show Details

The whole operation process includes feeding, separation, cleaning, dehydration, unloading, and the recovery of filter cloth can be completed during high-speed operation.

The single cycle time is short, the processing capacity is large, and the drying and cleaning effect of solid filter residue is good.
