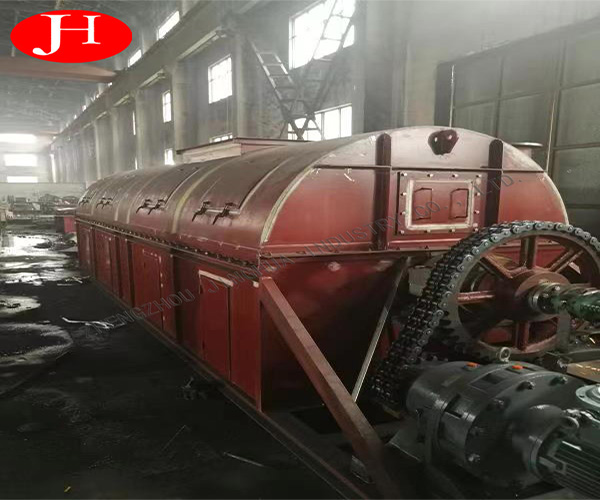

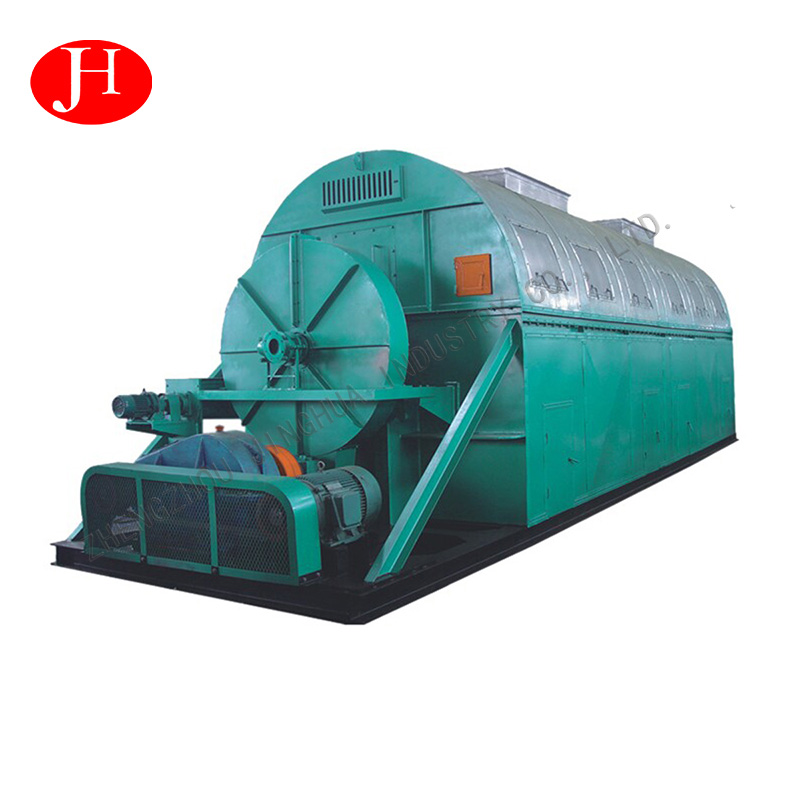

Pipe Bundle Dryer for Starch Processing

Pipe bundled tube dryer is an indirect heating dryer. It may operate either on countercurrent or down current principals. It can be widely applied in corn starch processing just like drying corn germ, cornfiber and corn protein.The machine has virtues of low steam consumption, big production quantity, low noise and less occupied area.The drying area of from 40sqm to 1000sqm. Pipe bundle dryer is widely used in starch industry for drying germ, fiber, gluten. It is widely used in corn production line.

Send email to us

Product Detail

Main technical parameters

Materials	Germ	Corn fiber	Corn protein
Inlet water content	55%	60%	45%
Outlet water content	3~5%	10~12%	12~13%
Drying intensity (evaporation kg water/ m²)	2.5~3	4.8	4.7
Model	Outline dimension	power(kw)	Weight (T)
GZG60	610016002160	5.5	9
GZG100	780019002460	7.5	13.5
GZG150	710022002750	11	19.5
GZG300	880024603180	18.5	26.5
GZG500	1098029004000	37	50
GZG650	1119032004300	55	67
GZG1000	1180036604770	110	91

Features

1Using the principle of heat conduction and radiation, the material is transported into the dryer by spiral.
2The direction of steam is opposite to that of material,energy saving effect is good
3Large processing capacity, low power configuration, stable operation, easy installation and maintenance
4Conducive to energy saving

Show Details

Using the principle of heat conduction and radiation, the material is conveyed into the dryer by a screw Driven by the agitation of the rotating tube bundle lifting plate, it moves from the feed end to the discharge end Heat absorption and water loss are completed during .

The movement, and the dryer is in a negative pressure state during production The direction of the steam is opposite to that of the material, and the energy saving effect is good.
